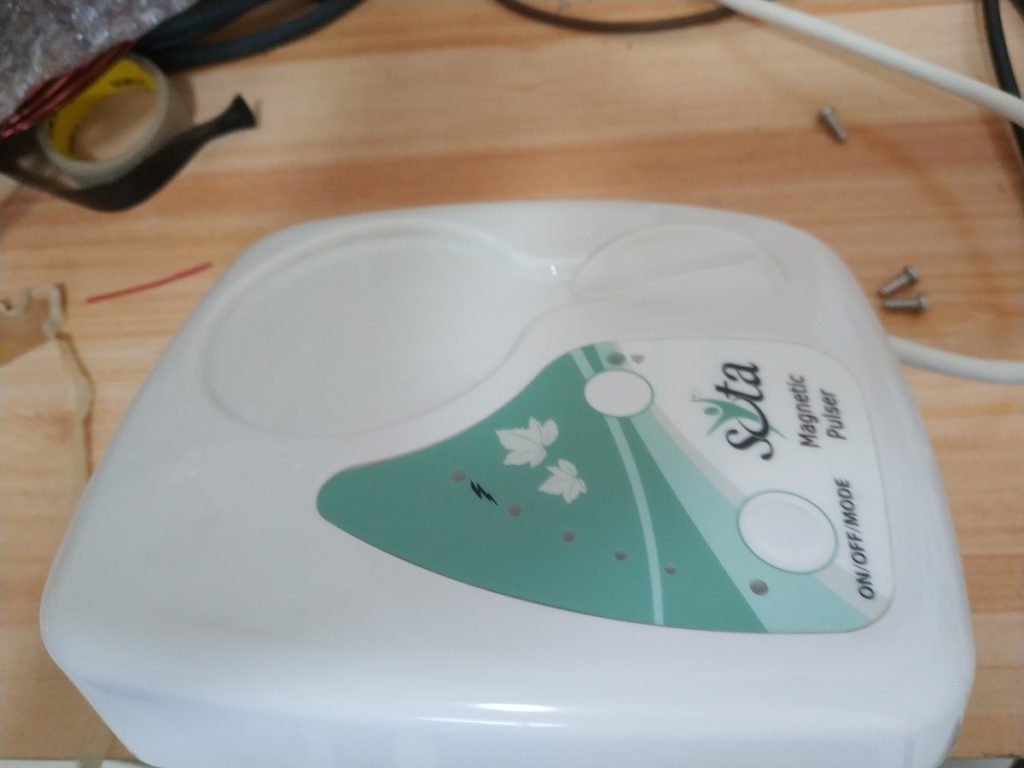

SOTA Magnetic Pulser Model MP6 research磁脉冲治疗仪拆解

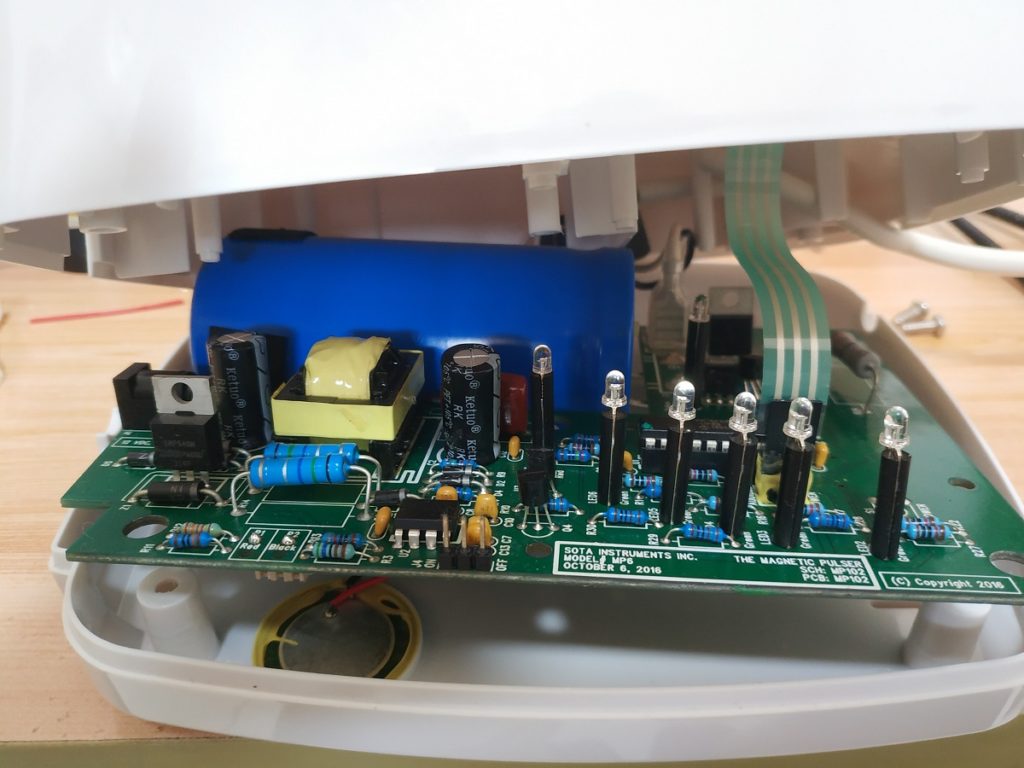

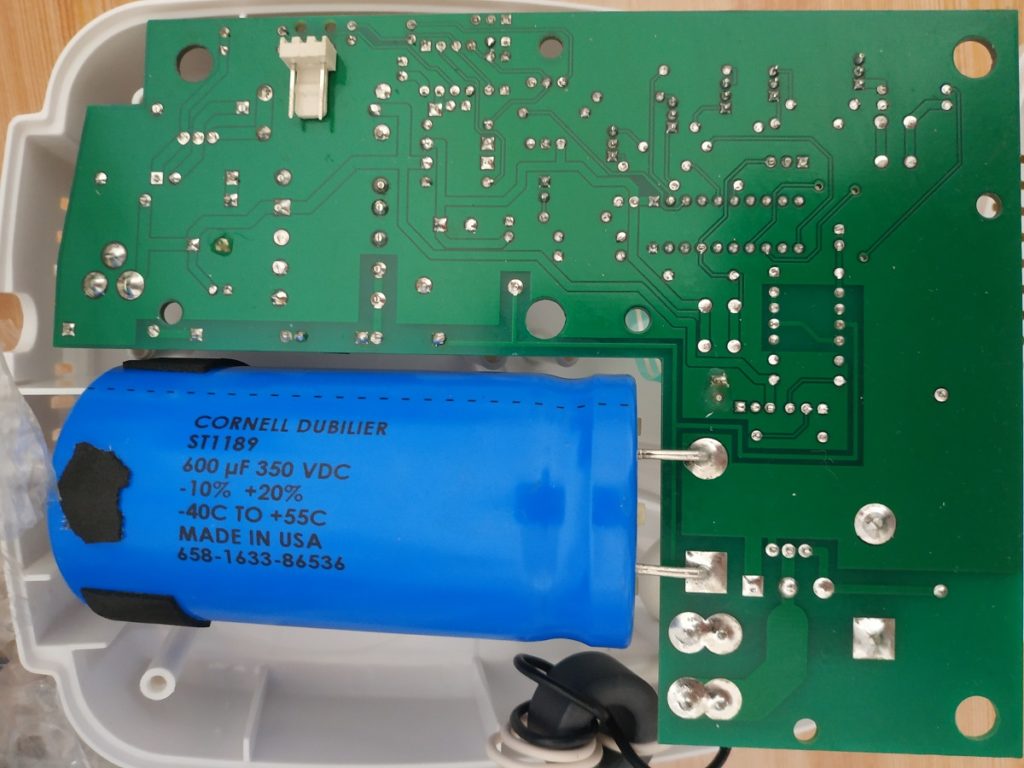

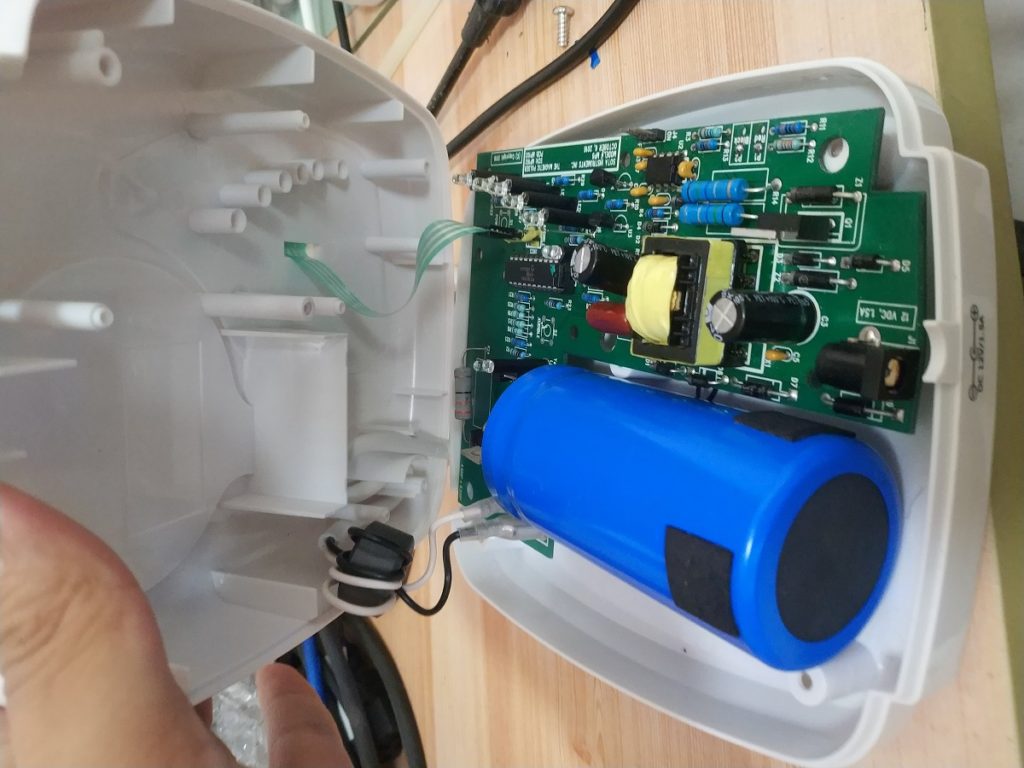

Today, I opened the mp6 device and studied this magnetic pulse therapy device. I found that the circuit is indeed like the seller said, 600uf 350vdc large capacitor (not photo flash cap), DC-DC boost circuit, single-chip control discharge, the overall circuit is very simple, in addition to the detailed function of the microcontroller Can not be analyzed, but can be replaced by other simple circuits.
