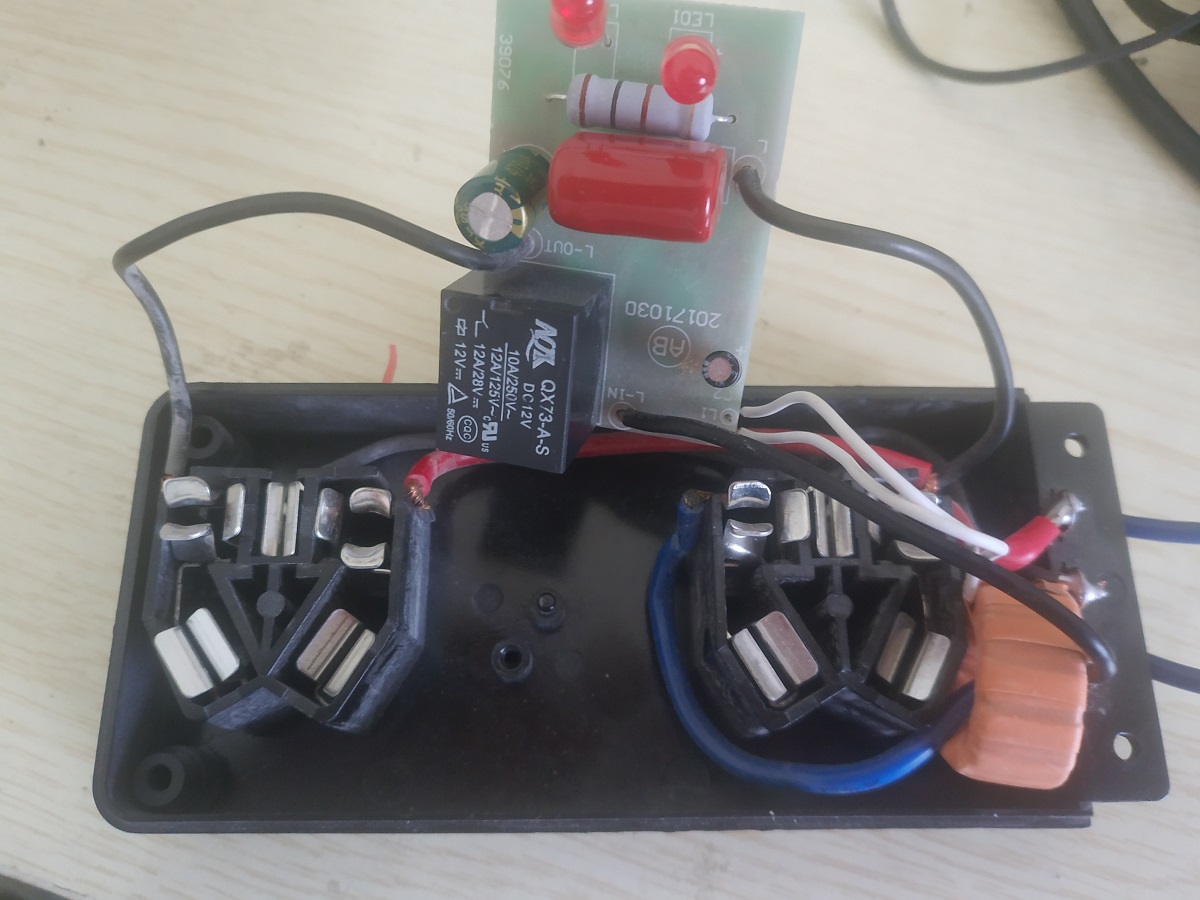

Used to modify the power strip or socket by yourself. When the power of the main outlet is greater than 300w, the controlled outlet starts to supply power; otherwise, the controlled outlet is out of power.
Circuit board size: length, width and height 49mm*33mm*20mm
Suitable voltage: AC 220V
Main socket: 300W-2500W
Controlled socket power: within 1000W (suitable for connecting small electrical equipment)
Advantages: the relay pulls in and controls the controlled socket

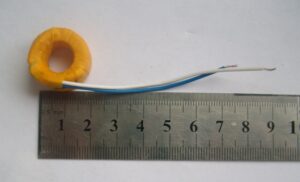

The kit includes: welded circuit, current mutual inductance coil

Price: 150 USD / 50 pcs  + shipping cost

Payment：PAYPAL

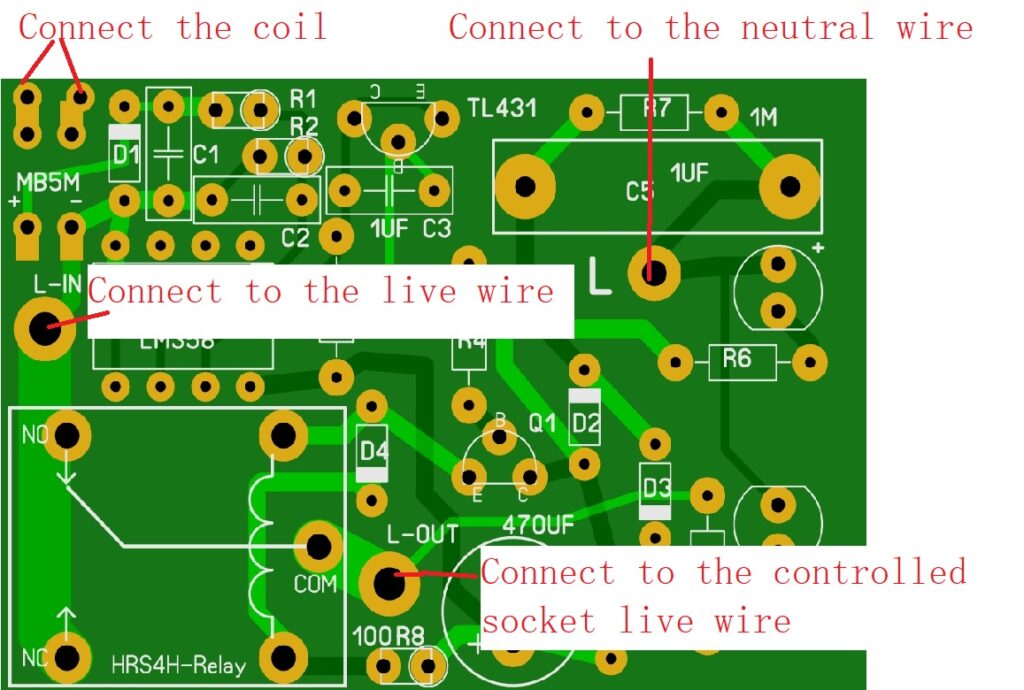

Instructions:
1. Pass the live wire connected to the main socket through the coil first.
2. Change the live wire of the controlled socket to connect it from the circuit board L-OUT.
3. Connect the L position of the circuit board to the neutral line.
4. Connect the circuit board L-IN to the live wire of the power supply.

联动插座

特点：主动副动 主停副停

例如当主插座接电脑、副插座接音箱等时，电脑开机音箱通电，电脑关机音箱断电。

继电器使用10A大电流继电器。

联系我：42451193@qq.com

量大从优，欢迎合作。
